Exterior Aluminum Casement Windows for Residential and Commercial Projects

Product Description

Product Description
New Type Curved Awning Window with Tempered Glass for Villa

Aluminum awning windows have a pleasant slimline architectural appearance, which makes them one of the more discreet window types available. Often chosen because of their functional design, awning windows are ideal in situations where furniture or kitchen benches prevent easy access to the window. The unique chain winder allows easy operation without interfering with insect/fly or security screens.

Another feature of the awning window is that it can be left partly open during inclement weather to allow continuous ventilation, while at the same time not letting in any of nature's undesirable elements.

Technical Specifications
Profiles • 6063-T5 high quality thermal break aluminum profiles
• 6063-T5 high quality non-thermal break aluminum profiles
• PVC/UPVC profiles
Glass • Double tempered glazing: 5+12A+5mm; 6+12A+6mm; etc.
• Single tempered glazing: 6mm; 8mm; 10mm; 12mm; etc.
• Laminated glazing: 8.76; 10.76; etc.
Hardware German brand, Australian brand, Chinese brand
Mesh • Stainless steel security mesh
• Aluminum security mesh
• Fiberglass flyscreen
• Retractable flyscreen
Surface Treatment Powder coating, Anodized, Electrophoresis, Wood Grain

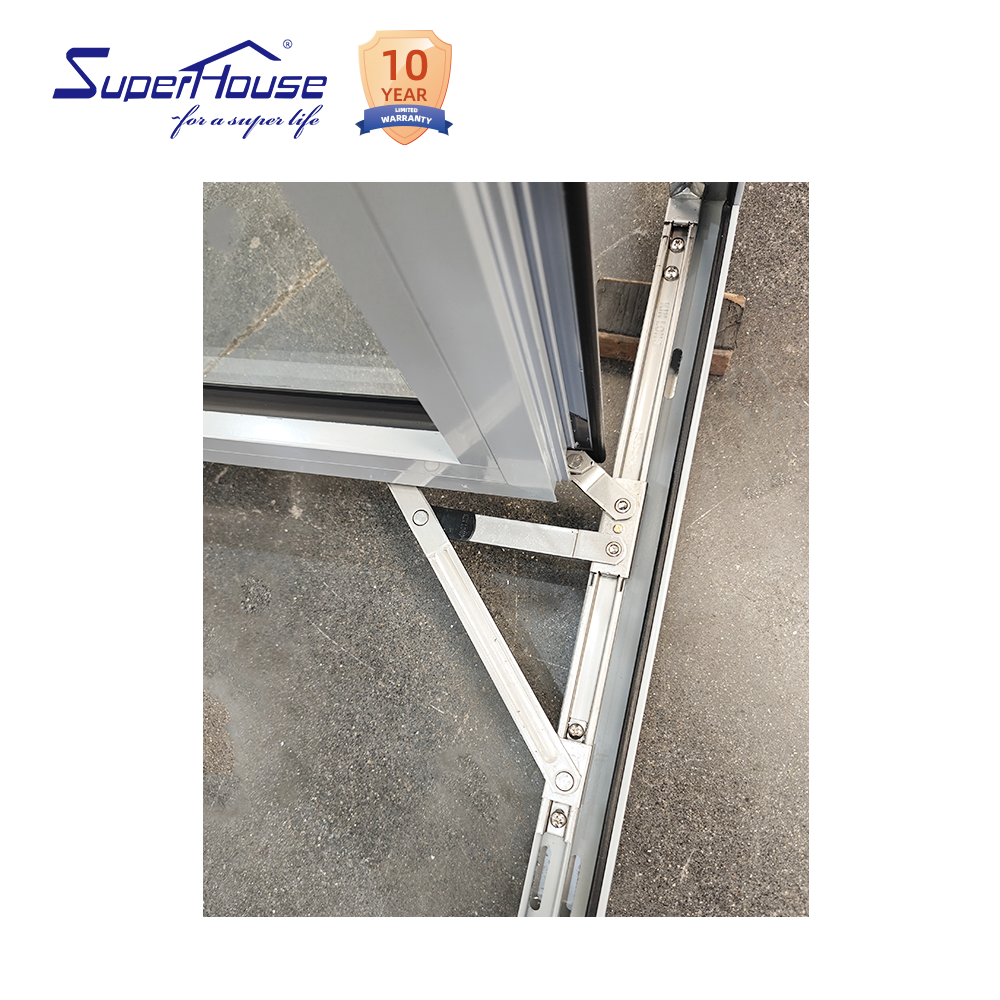

Awning Window Detail 1
Awning Window Detail 2
Key Advantages & Standards
  • 10 Years Quality Warranty Guarantee
  • Fabricated according to AS2047, AS2208 & AS1288 standards
  • Complies with CSA, NOA, NFRC, and Miami Dade standards
  • Audited Australian Standard Workshop
  • High-quality materials & strict quality control
  • Over 10 years of manufacturing and exporting experience
Exterior Aluminum Casement Windows for Residential and Commercial Projects

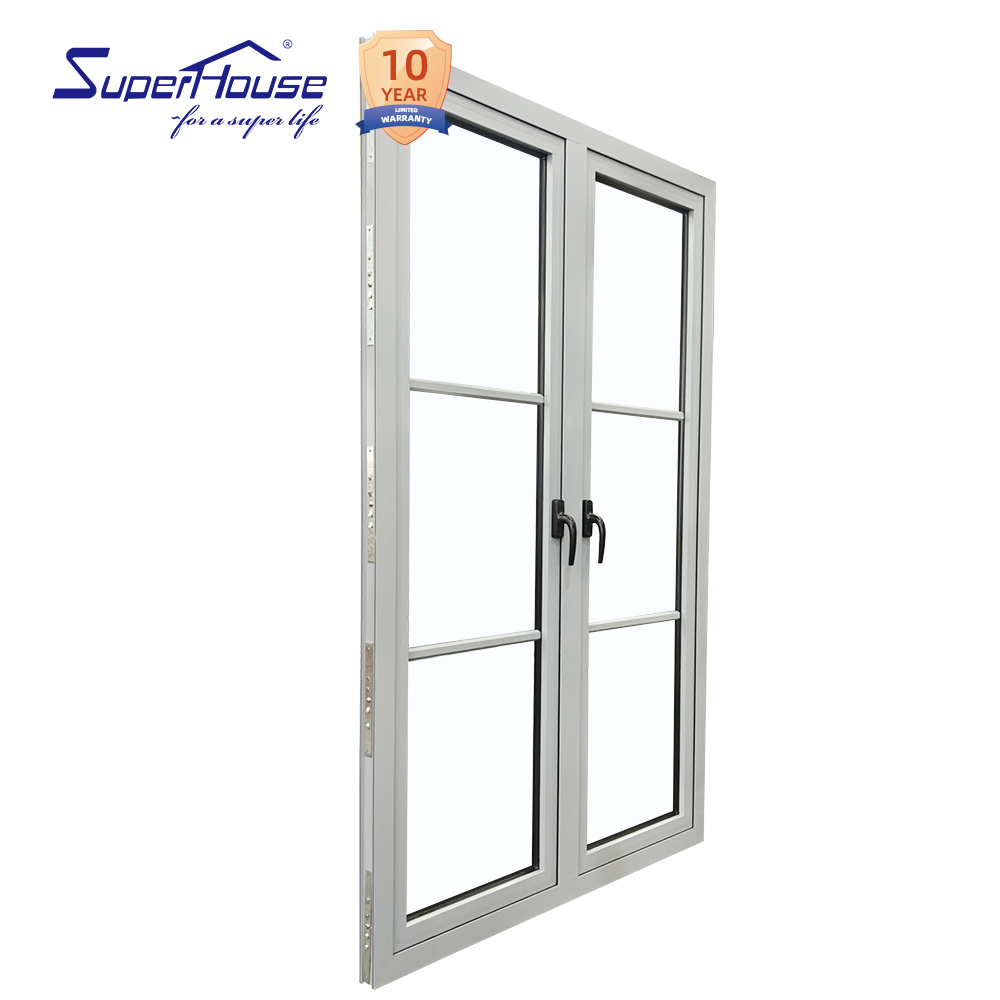

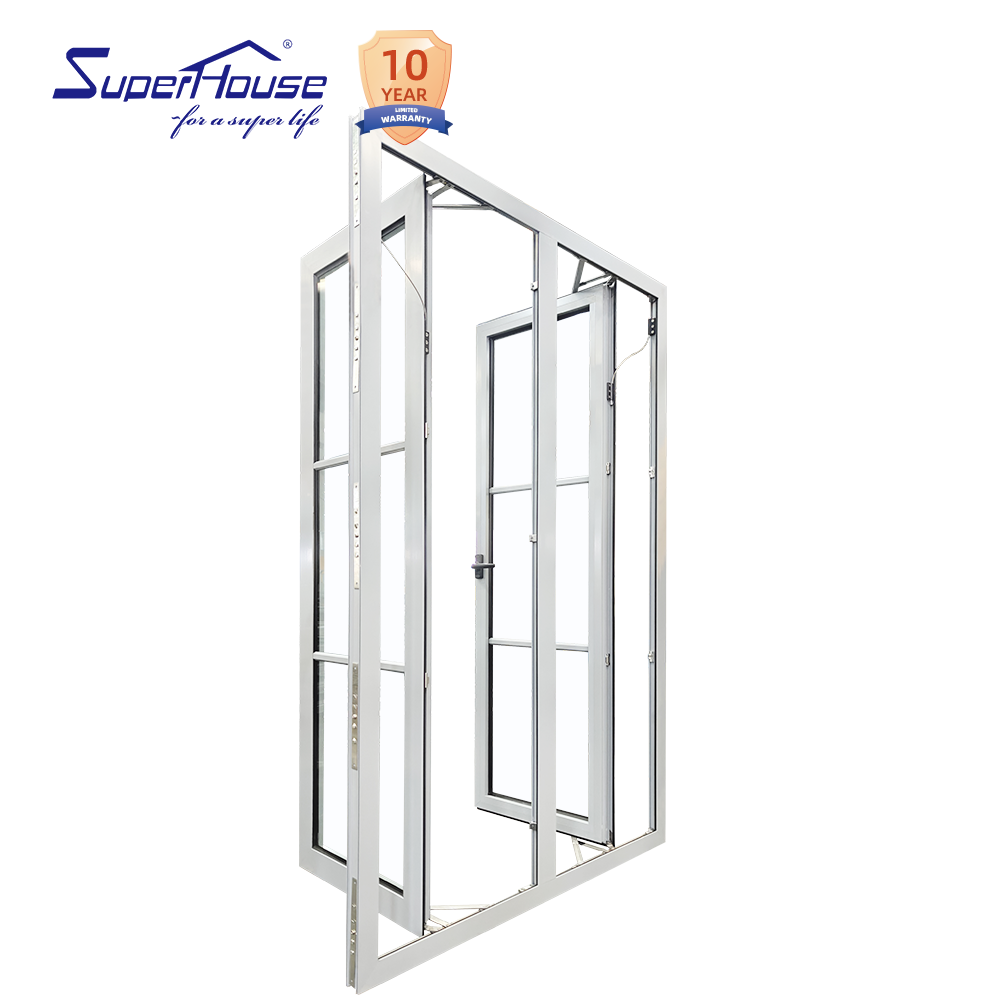

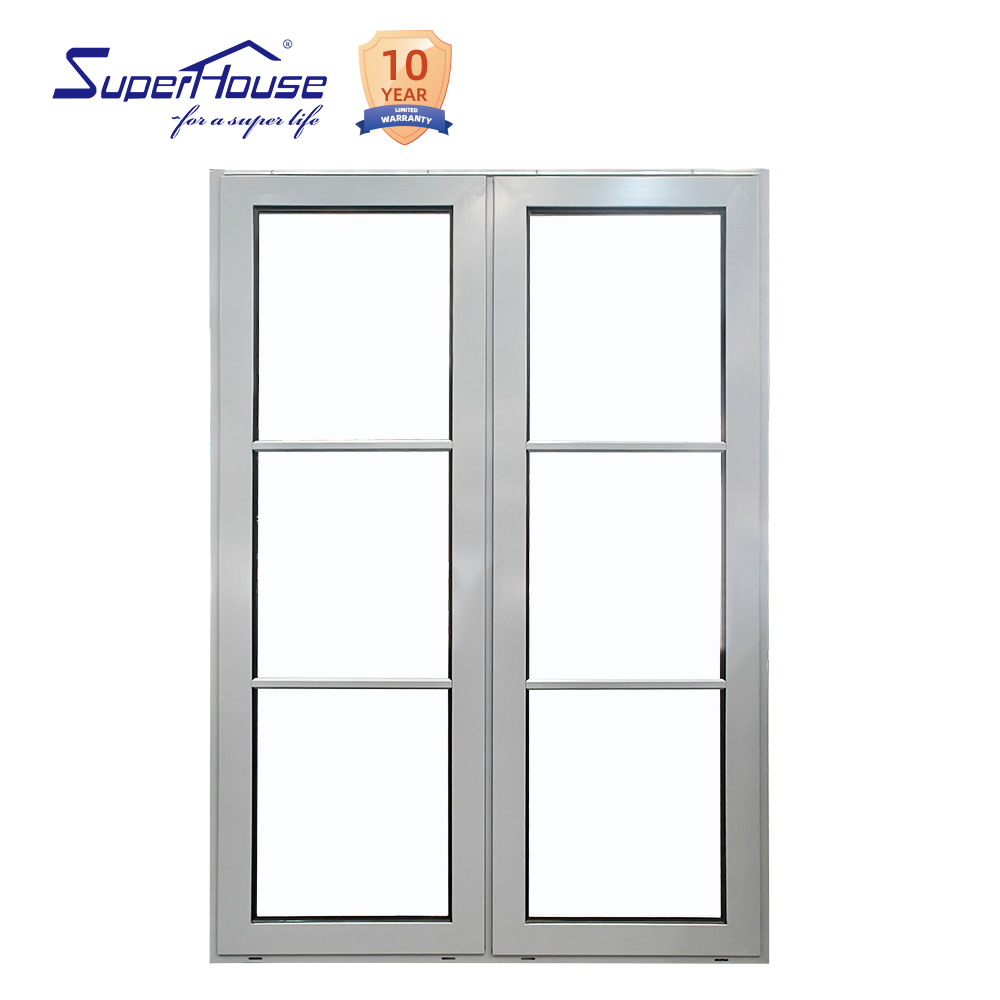

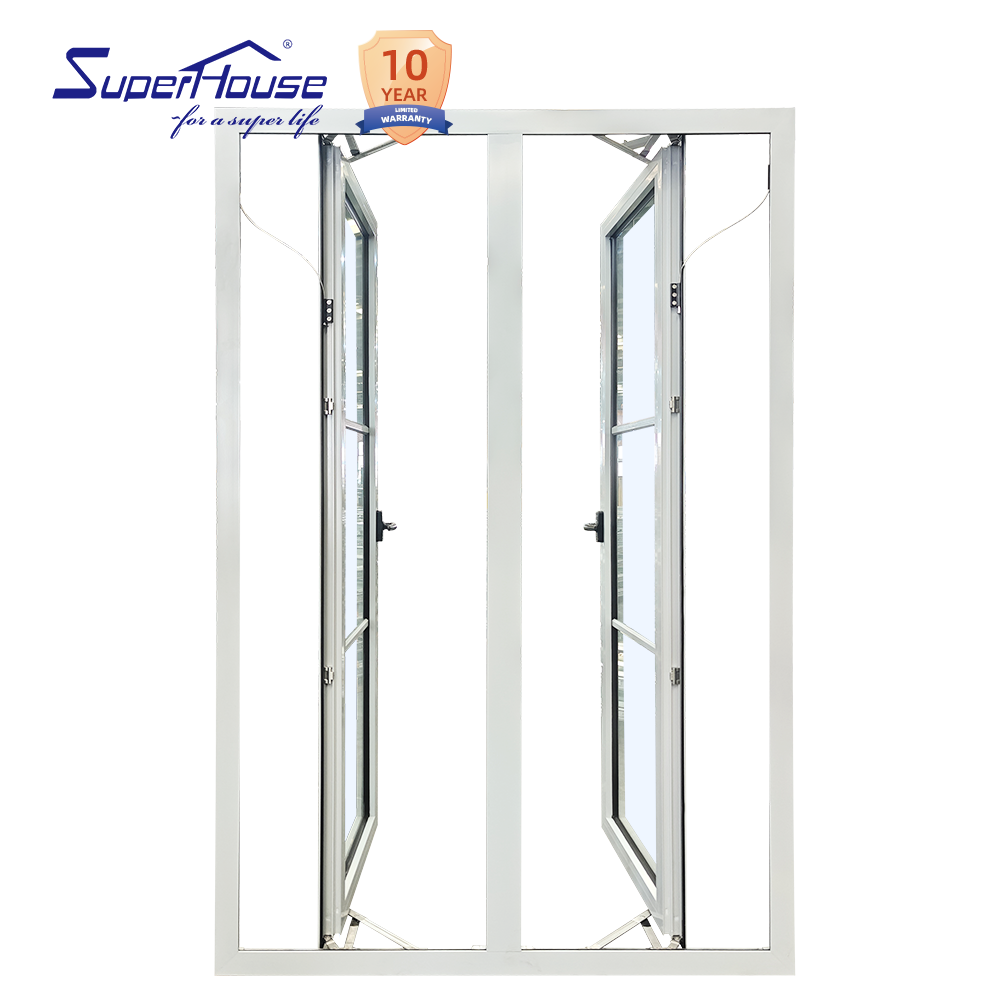

Product Showcase 1
Product Showcase 2
Product Overview
Project Gallery
Exterior Aluminum Casement Windows Projects
Certifications & Testing
Certifications Display
Configuration & Size Options

Custom Size and Design: Standard sizes are intended as a guide only, with custom sizes available upon request. Windows and doors are designed and built based on your specific architectural requirements.

Window Configurations
Color & Surface Treatments

For surface treatment, we provide Powder Coating, Electrophoresis, Fluorocarbon Painting, and Wood Grain finishes. A standard range of colors is available, or custom colors can be matched to suit your individual design preferences.

Profile Color Options
Packaging & Delivery Process
Step 1. Corner Protection
Wrap window corners with hard and thick corrugated board, tightened securely with protective film.
Step 2. Pallet Loading
Place units onto sturdy iron steel pallets designed to load up to 2.0 T, accommodating approx. 10-15 window & door units.
Step 3. Secure & Waterproof
Fix all items to the iron pallets with steel bars and screws. Wrap the entire pallet with protective film to prevent moisture and dust penetration.
Step 4. Safe Container Loading
Use forklifts to load pallets into containers, using air bags in pallet gaps to ensure 100% safe transportation.
Packaging Details
Frequently Asked Questions
Q: What is your main product range?
We supply complete window and door systems (including profiles, hardware, accessories, and glass) as well as finished products ready for site installation.
Q: How can I get an accurate quotation?
Pricing is based on specific project requirements. Please provide: 1) Shop drawings or window schedule with dimensions, quantities, and types; 2) Frame color; 3) Type and thickness of glass (single, double, laminated, Low-E, etc.).
Q: What is the standard size of your windows and doors?
Our products are fully CUSTOM MADE. We manufacture all windows and doors according to the buyer's custom dimensions and project specifications.
Q: What is your typical delivery lead time?
Delivery time is generally 38 days after deposit payment and drawing confirmation.
Q: What are your standard payment terms?
Normally, 30% - 50% of the total amount by T/T as deposit, with the balance due before delivery. Irrevocable L/C at sight is also acceptable.
Q: What warranty coverage do you provide?
A 10-year quality warranty is provided, including frame finish against fading or peeling, and proper function of hardware and accessories under correct operation.
