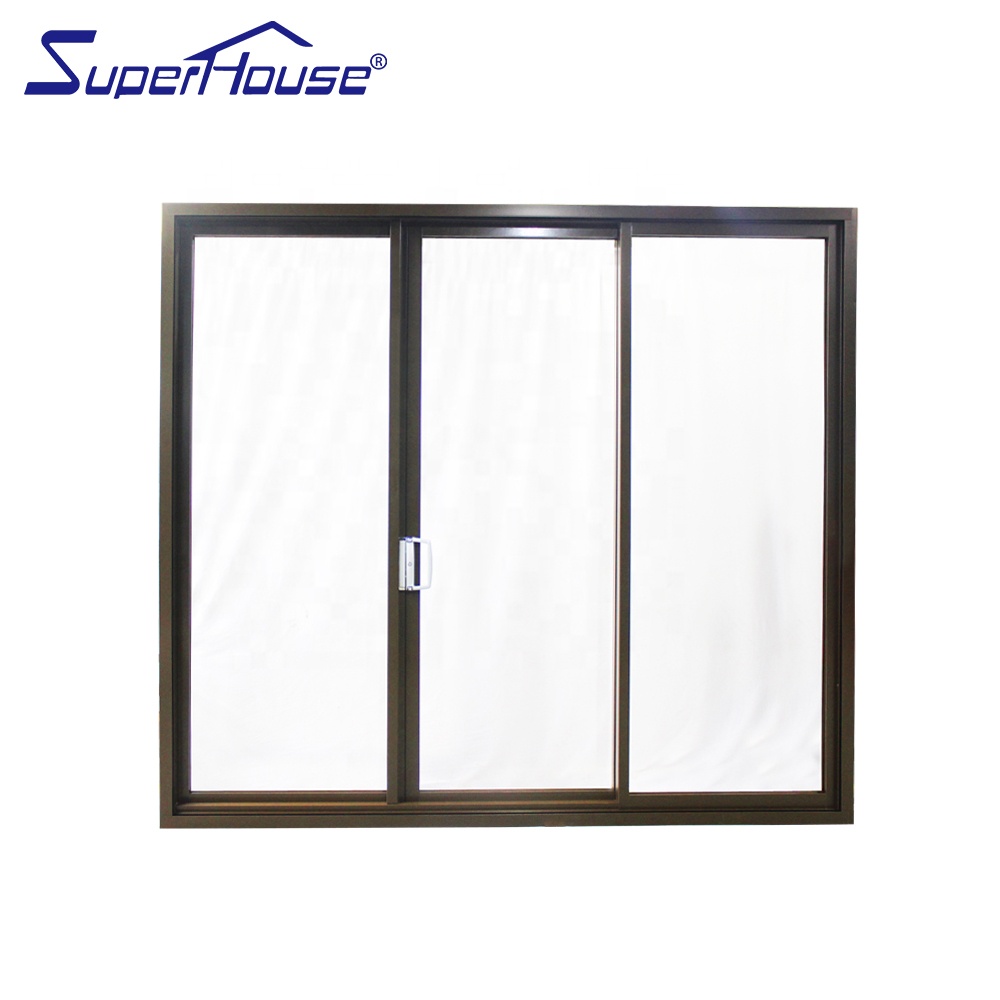

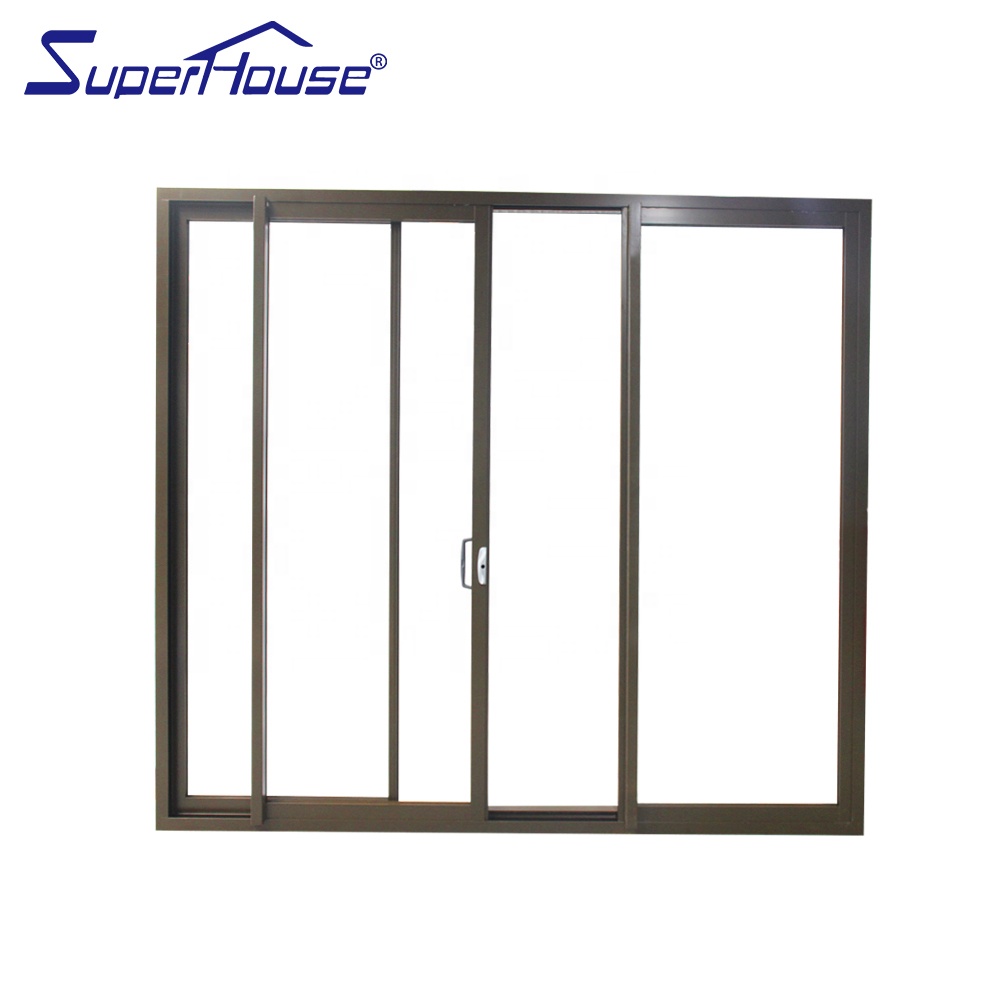

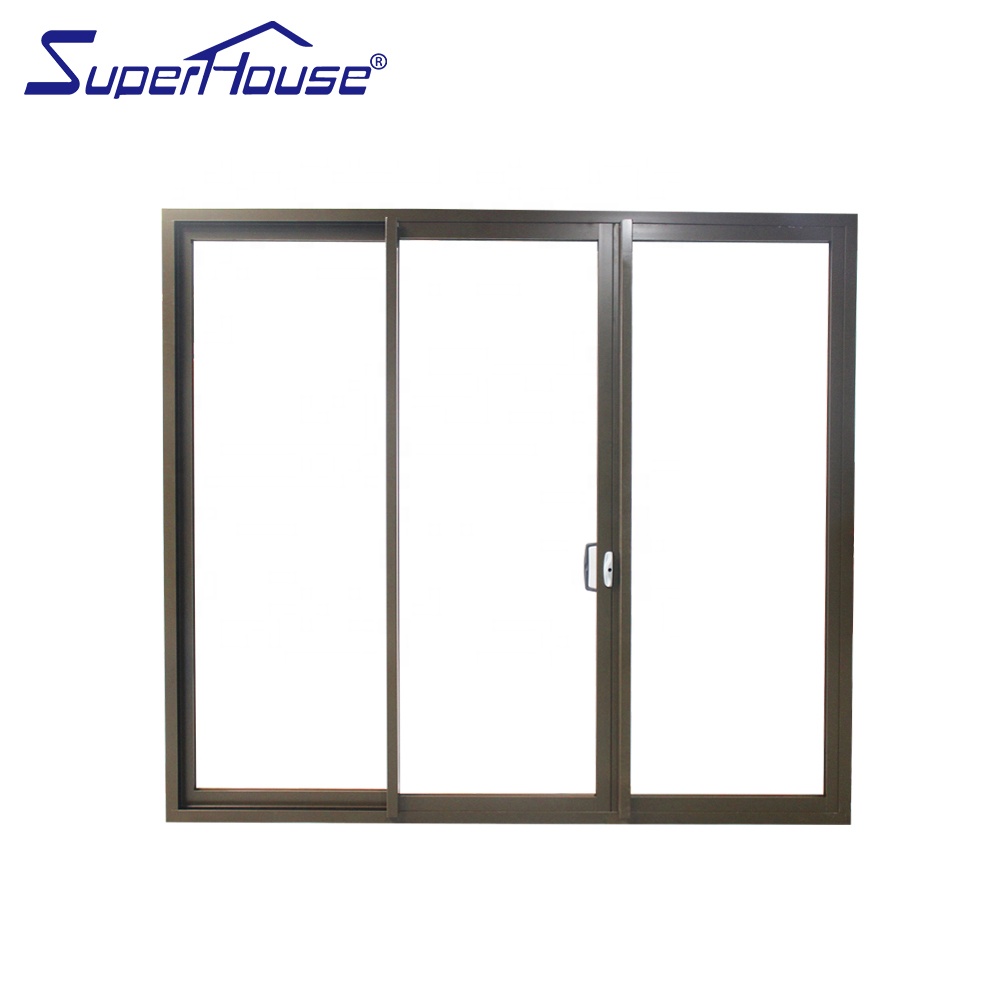

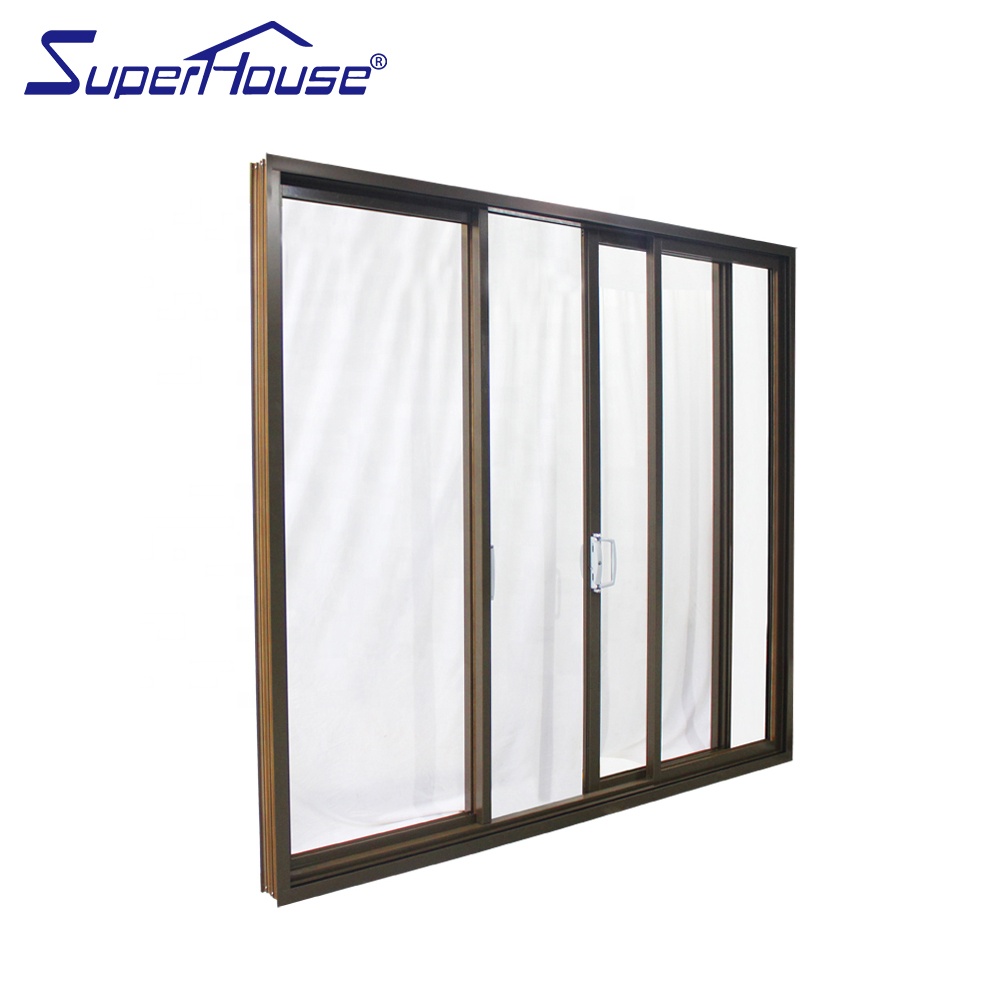

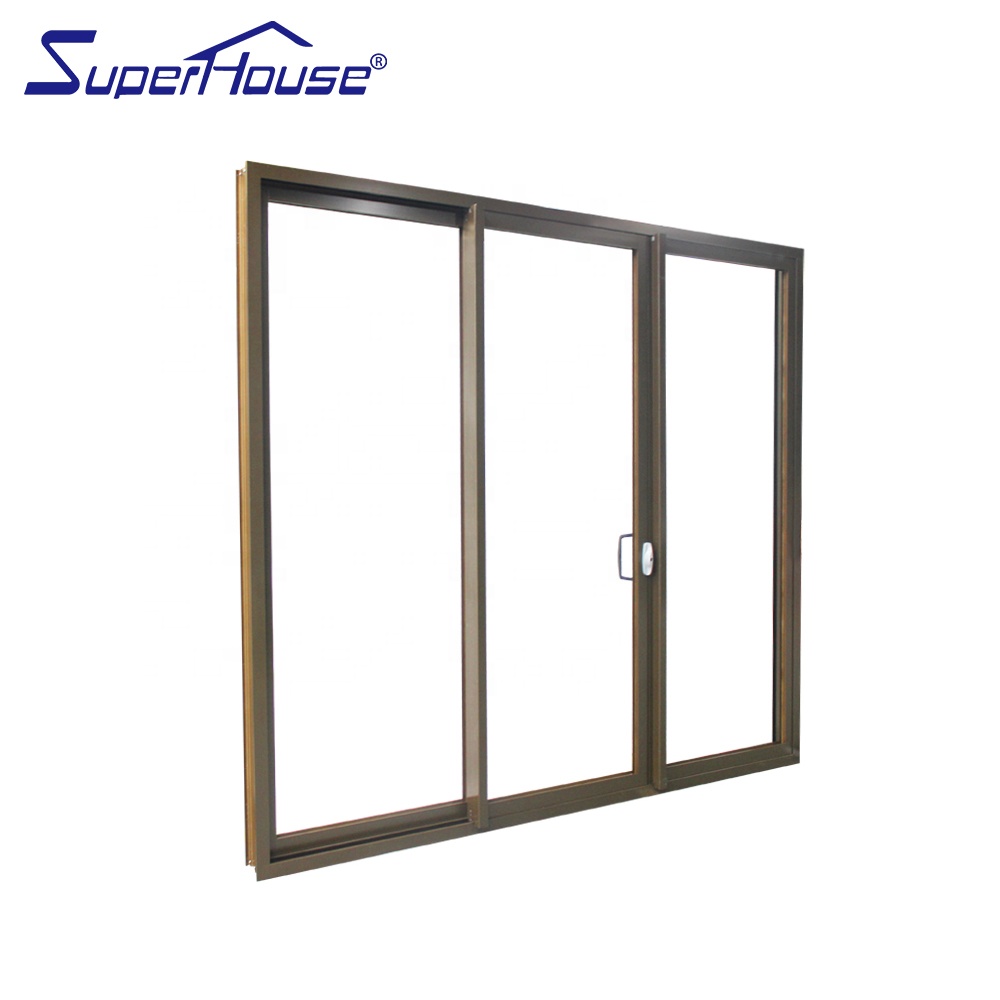

USA Standard Double Glazed Powder Coating Aluminium Door Sliding Door Stacker Door with Bronze Color

Product Description

USA Standard Double Glazed Powder Coating Aluminium Sliding & Stacker Door

Designed to allow seamless outdoor-indoor transitions, adding dimension and security to your living space. Available in 2, 3, or 4 door combinations with a high-security double deadlocking system.

Aluminium Sliding Door Overview
Sliding Door Detail 1

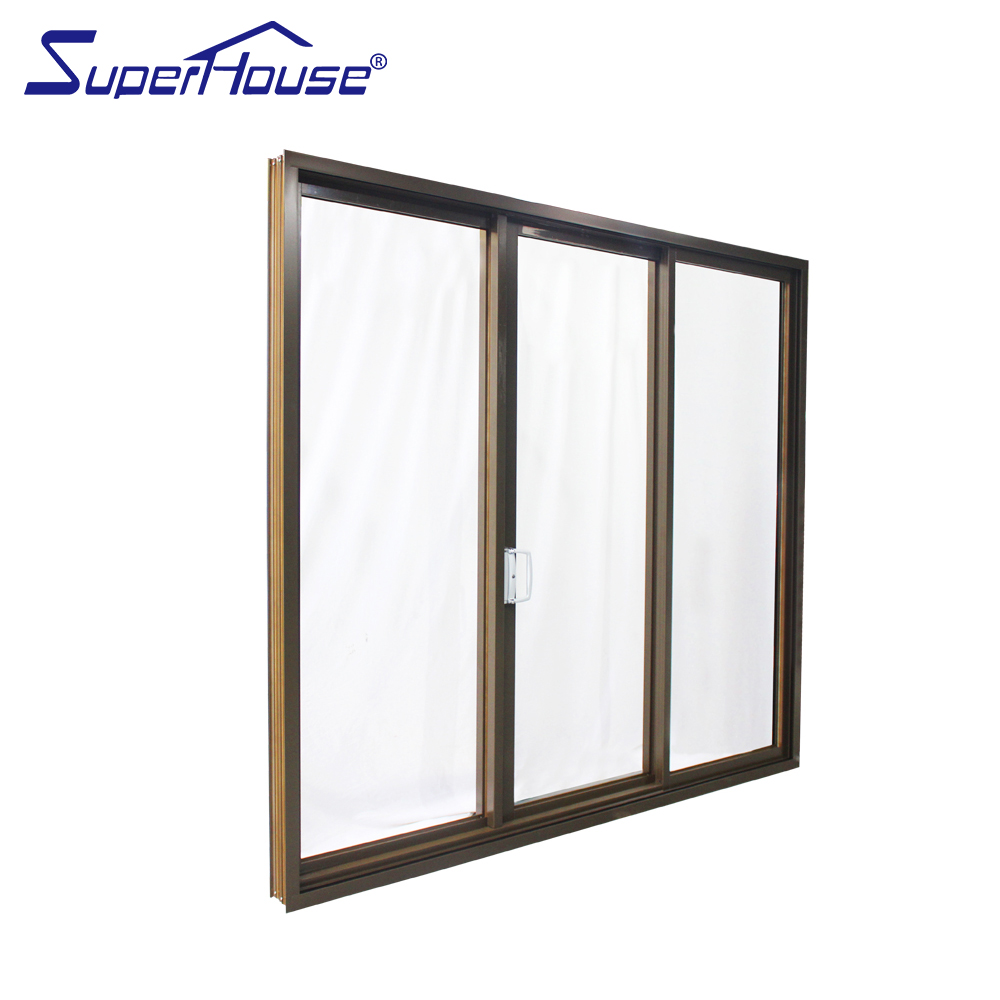

Sliding Door Detail 2
Profile View

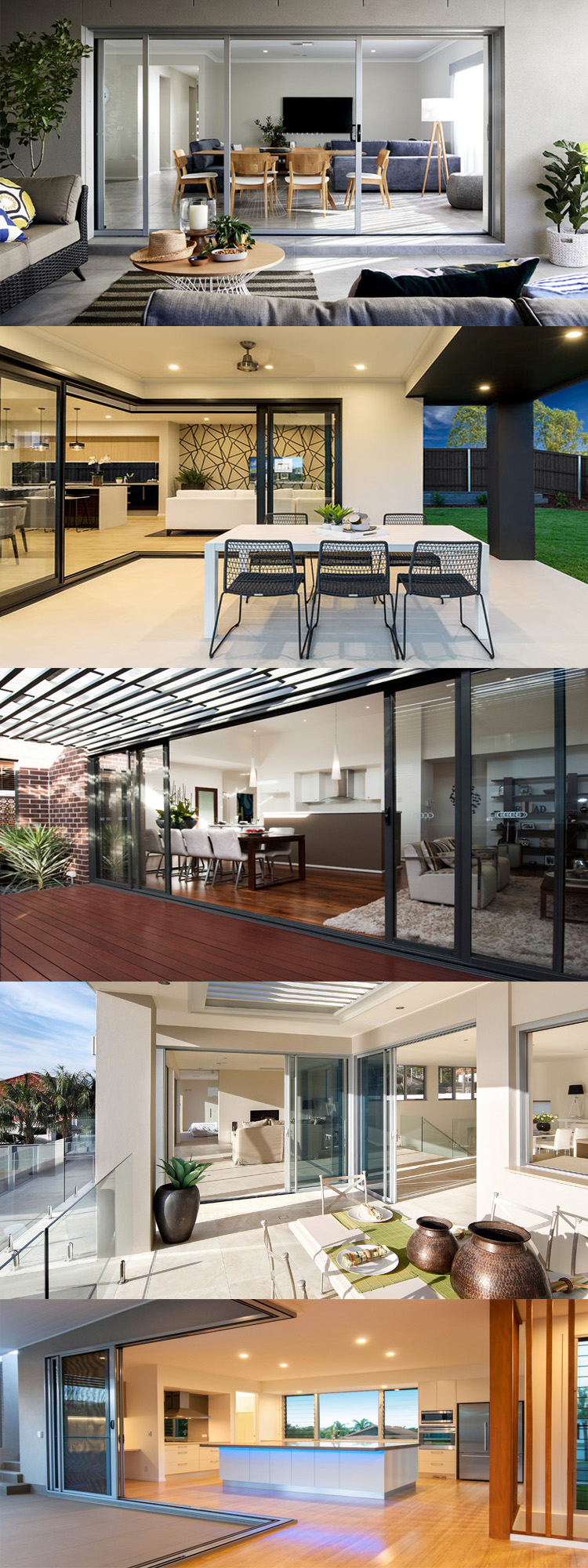

Structure View
Product Specifications
Profiles • 6063-T5 high quality thermal break aluminum profiles
• 6063-T5 high quality non-thermal break aluminum profiles
• Heavy-duty PVC/UPVC profiles
Glass Options • Double tempered glazing: 5+12A+5mm, 6+12A+6mm...
• Single tempered glazing: 6mm, 8mm, 10mm, 12mm...
• Laminated glazing: 8.76mm, 10.76mm...
Hardware German brand, Australian brand, or premium Chinese brand available
Mesh Options Stainless steel security mesh, Aluminum security mesh, Fiberglass flyscreen, Retractable flyscreen
Surface Finish Powder coating, Anodized, Electrophoresis, Wood Grain finish
Technical Specifications Chart
Key Performance & Features
SP86, SP100, SP130, SP150 series for residential, commercial, and luxury villas
Grill & easily removable/washable fly screen options available
Timber reveal integration for fast and smooth installation
Fin flat angle tailored for double brick structural systems
Stainless steel mesh for high security & aluminum net for bushfire protection
Heavy-duty double chain mechanisms & auto-controllers for high positions
Accommodates glass thickness up to 6.38mm – 19mm
Acoustic insulation (up to STC 39) & WERS energy-rated solutions
Standards & Manufacturing Excellence
Manufacturing Standards 1

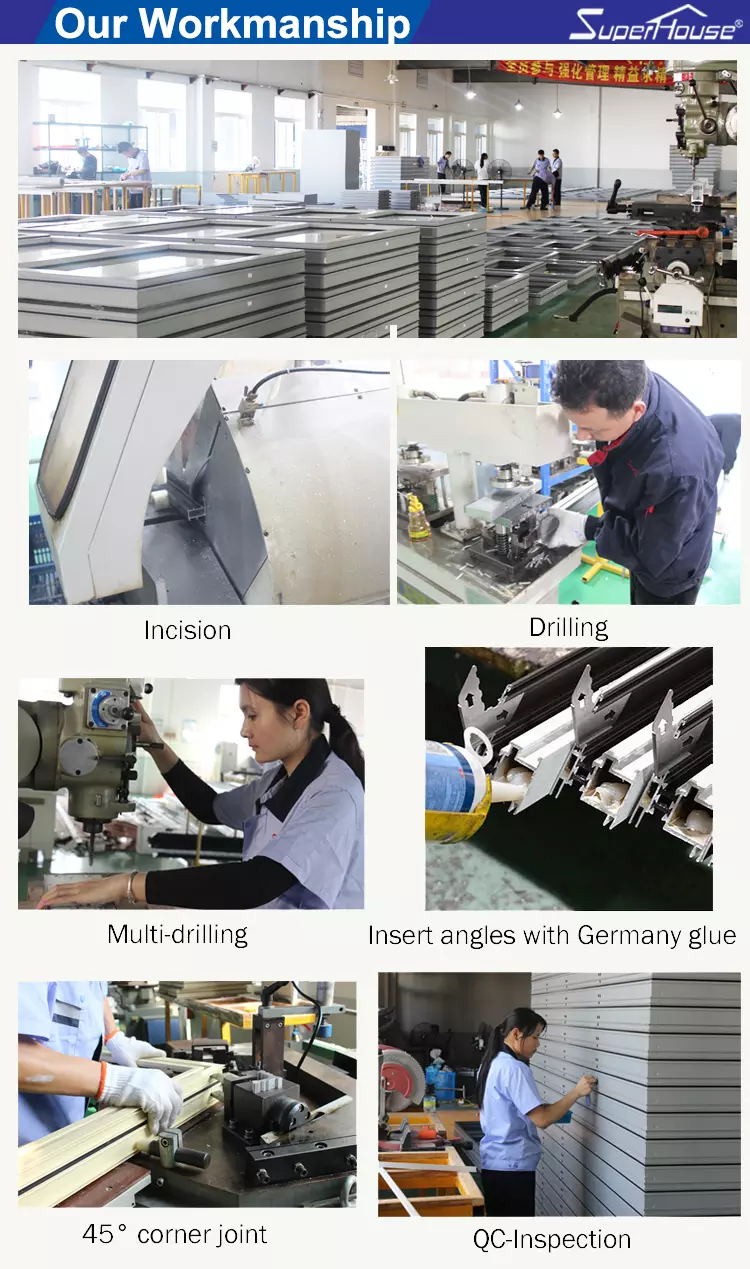

Manufacturing Standards 2
Configurations & Profile Colors

Custom sizing and bespoke designs are crafted based on specific project requirements. Surface treatment options include Powder Coating, Electrophoresis, Fluorocarbon Painting, and Wood Grain finishes. Choose from standard palettes or request custom colors to suit your architectural vision.

Sizing and Configurations
Color Options
Certifications & Compliance
Certifications
Packing & Secure Loading Details
1

Wrap window corners with thick corrugated board and protect completely with protective film.

2

Place on iron steel pallets capable of holding up to 2.0 T (approx. 10-15 door/window units).

3

Secure units to steel pallets with screws and steel bars. Seal with protective film against dust & moisture.

4

Forklift loading into containers using protective air bags between pallets to guarantee 100% safe transit.

Packing and Loading Process
Completed Project Gallery
Project Showcase 1
Project Showcase 2
Related Door & Window Products
Related Product 1
Related Product 2
Related Product 3
Related Product 4
Related Product 5
Related Product 6
Related Product 7
Related Product 8
Frequently Asked Questions (FAQ)
Q: What is your main product line?
A: We supply complete window and door systems (including aluminum profile, hardware, accessories, and glass) as well as finished, ready-to-install products tailored to project measurements.
Q: How can I receive an exact price quotation?
A: Prices are custom-quoted based on your dimensions and specifications. Please provide: 1) Window/door schedule or shop drawings; 2) Frame color choice; 3) Glass type, thickness (single, double, laminated), and performance coatings (Low-E, reflective, Argon filled).
Q: What is the typical lead time for production?
A: Standard delivery time is approximately 38 days following deposit receipt and drawing confirmation.
Q: Do windows arrive fully assembled or glazed on-site?
A: Glass is pre-installed at our factory based on door/window dimensions to ensure maximum safety during transport and effortless on-site installation. On-site glazing is recommended primarily for oversized units.
Q: What warranty coverage is included?
A: A 10-year quality warranty is provided covering non-fading and non-peeling frame finishes, along with proper function of hardware and components. Replacement hardware is dispatched via international courier when needed.
Q: Are your products certified to international standards?
A: Yes, our products meet key international building standards including Australian AS2047 & AS2208 standards, as well as US and Canadian testing requirements (CSA, NFRC, and Miami Dade).
