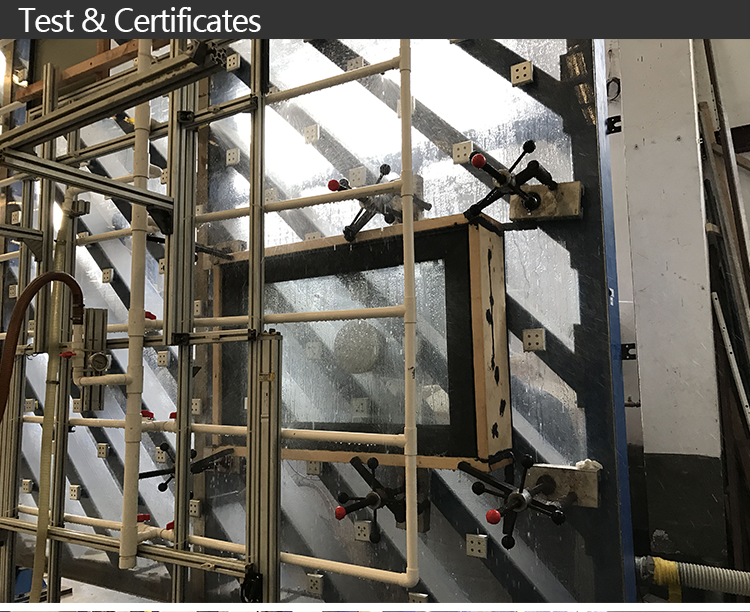

Performance Ratings
💨 1. Wind Pressure
Serviceability design wind pressure (1500 Pa)
Rating: N4
🍃 2. Air Infiltration Test
Test method AS4420.4-1996
+75 Pa: 0.11 L/s·m²
-75 Pa: 0.11 L/s·m²
🌧️ 3. Water Penetration Test
Test method AS4420.5-1996
Test Pressure: 900 Pa
Rating: N6, C4
🛡️ 4. Ultimate Strength Test
Test method AS4420.6-1996
Test Pressure: 4500 Pa
Rating: N4

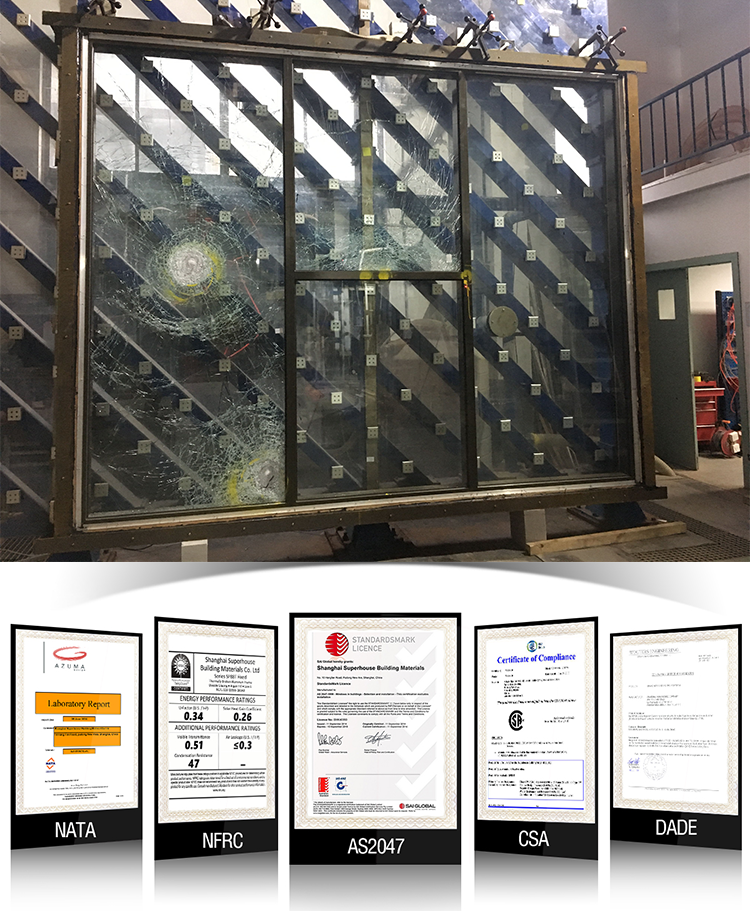

Certifications & Standards
- Approved by Australian Window Association, SAI Global, and TUV.
- Official member of Australian Window Association with a 10-year warranty guarantee.
- Fabricated aluminium windows & doors engineered according to AS2047 standards.
- Recognized member of the Window Energy Rating Scheme (WERS).
- Glazing meets strict AS2208 & ANSIZ97.1 safety standards.
- Complies with American NFRC and Miami Dade structural testing standards.

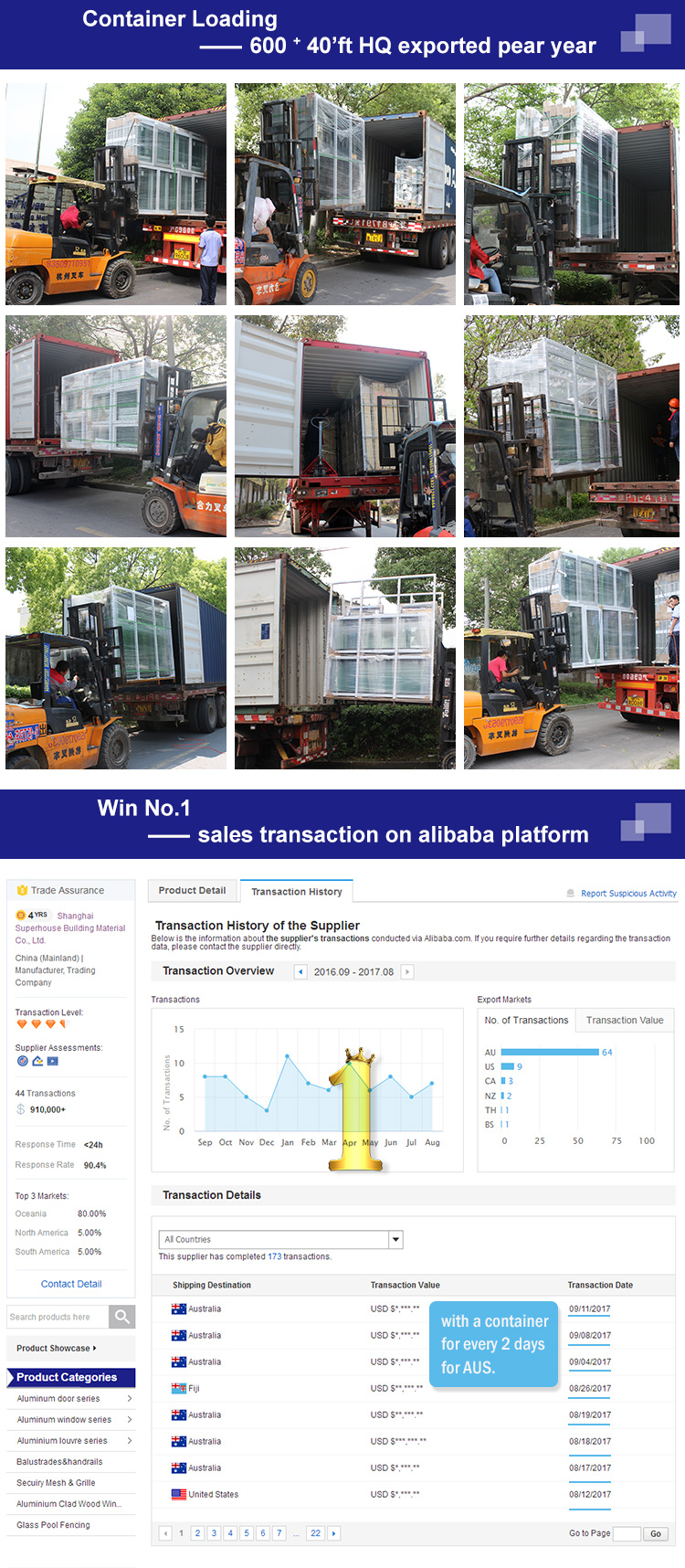

Packaging & Shipping
| Process |
Packaging Details |
| Packaging Steps |
1. Protective tape protects frames from scratches.
2. Windows or doors are fixed securely on iron pallets.
3. Items are tied on iron pallets with durable plastic belts.
4. PE films keep products protected from sea water.
5. Air bags fill the space between iron pallets.
6. Iron pallets are secured inside the container with plastic belts.
|
| Delivery Detail |
38-50 days after order confirmation. |
Frequently Asked Questions
Q Do your products meet the AS2047 Standard?
Yes, all doors and windows meet the official AS2047 standard. Additionally, the glass components comply with AS2208, UL, and EN standards.
Q What is the standard manufacturing lead time?
The manufacturing lead time is generally 38-45 days following deposit receipt and shop drawing approval, as profile extrusion requires around 25 days.
Q Do you accept customized designs and sizes?
Yes, all product dimensions and design specifications are fully customizable according to your project requirements.
Q What color options are available for the profiles?

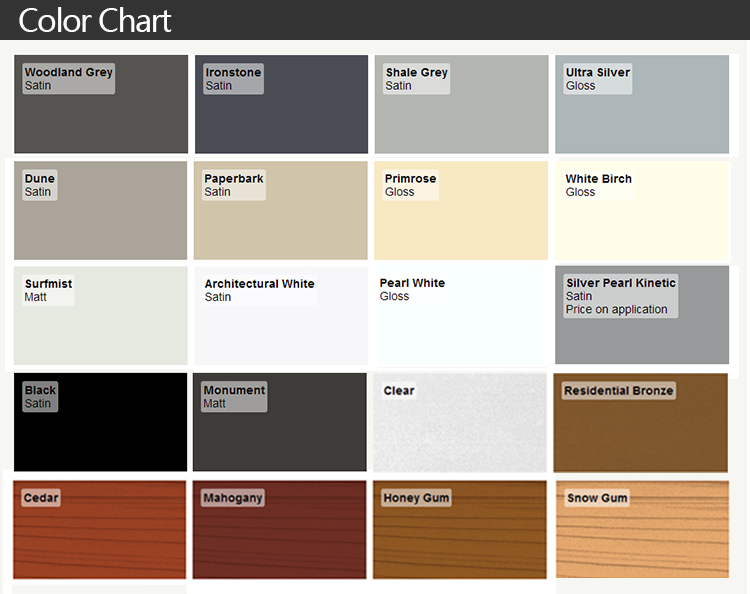

Colors can be selected from Colorbond, RAL, or Interpon color charts, as well as customized physical color samples.
Q What brands of hardware are used?
Hardware configurations can be selected based on project needs, including top German, Australian, and premium Chinese brands.
Q How are the products packaged to prevent damage?
Products are wrapped with protective film, mounted on steel iron pallets, separated by air bags, and tightly strapped to ensure safe transit.
